Ubiquiti U6-Mesh

WiFi Slick, com 6 APs internos/externos e 6 streams espaciais, projetados para aplicações em malha. Ubiquiti U6-Mesh, 2,4 GHz, 5 GHz, 4800 Mbit/s, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3, 1000 Mbit/s

Categoria: Ubiquiti
SKU: U6-MESH

Preço:183€

Quantidade:

COMPRE AGORA!

Descrição

Dimensions

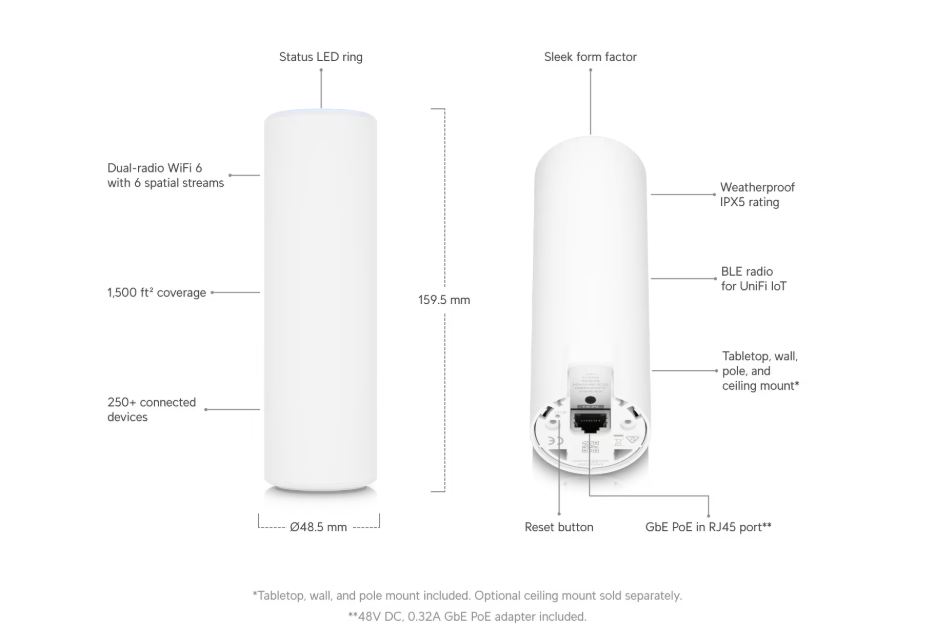

Ø48.5 x 159.5 mm (Ø1.9 x 6.3")

WiFi Standard

WiFi 6

Spatial Streams

6

Coverage Area

140 m² (1,500 ft²)

Max. Client Count

250+

Uplink

GbE

Mounting

Wall, Pole (Mounts Included)

Weatherproofing

IPX5

Power Method

PoE

MIMO

5 GHz

4 x 4 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz

4.8 Gbps (BW160)

2.4 GHz

573.5 Mbps (BW40)

Antenna Gain

5 GHz

5 dBi

2.4 GHz

3 dBi

Max. TX Power

5 GHz

26 dBm

2.4 GHz

22 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11ax (WiFi 6)

7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5)

6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n

6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Wireless Meshing

✓

Band Steering

✓

802.11v BSS Transition Management

✓

802.11r Fast Roaming

✓

802.11k Radio Resource Management (RRM)

✓

Advanced Radio Management

✓

Passpoint (Hotspot 2.0)

✓

Captive Hotspot Portal

Custom Branding Landing Page

✓

Voucher Authentication

✓

Payment-Based Authentication

✓

External Portal Server Support

✓

Password Authentication

✓

Guest Network Isolation

✓

Private Pre-Shared Key (PPSK)

✓

WiFi Speed Limiting

✓

Client Device Isolation

✓

WiFi Schedules

✓

RADIUS over TLS (RadSec)

✓

Dynamic RADIUS-assigned VLAN

✓

Max. Power Consumption

13W

Includes PoE Adapter

✓

Supported Voltage Range

44—57V DC

Networking Interface

(1) GbE RJ45 port

Weight

400 g (14.1 oz)

Management

Ethernet

Enclosure Material

Polycarbonate, aluminum

Mount Material

Polycarbonate

LEDs

System

White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)

NDAA Compliant

✓

Certifications

CE, FCC, IC, SRRC, Anatel: 02111-22-08356

Operating Frequency

US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz
