| Built-in Devices: | 64 GB SSD |
|---|
| Capacity: | Multiple Spanning Tree Protocol instances: 64 ¦ HSRP groups: 490 ¦ Per VLAN Rapid Spanning Tree instances: 4000 ¦ Maximum number of links in a port channel: 32 ¦ Maximum number of port channels: 512 ¦ ECMP paths: 64 ¦ Virtual Routing and Forwarding (VRF) |
|---|
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Cla |
|---|
| Depth: | 57.1 cm |
|---|
| Designed For: | P/N: N9K-C93180-EX-B24C |
|---|

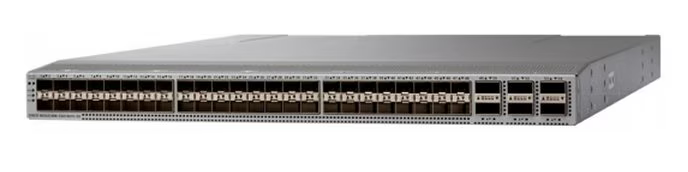

| Device Type: | Switch - 48 ports - L3 |
|---|
| Enclosure Type: | Rack-mountable 1U |
|---|
| Features: | Layer 3 switching, High Availability, hot swappable 4 fans, Virtual PortChannel (vPC) technology, In-Service Software Upgrade (ISSU), NPV Gateway mode, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN |
|---|
| Height: | 4.4 cm |
|---|
| Humidity Range Operating: | 5 - 95% (non-condensing) |
|---|
| Included Accessories: | Fixed accessory kit |
|---|
| Interfaces: | 48 x 1/10/25Gbit LAN SFP+ downlink ¦ 6 x 100Gbit/40Gbit LAN QSFP28 uplink ¦ 1 x management RJ-45 ¦ 1 x management SFP+ ¦ 1 x USB ¦ 1 x serial (RS-232) |
|---|
| MAC Address Table Size: | 512K entries |
|---|
| Max Operating Temperature: | 40 °C |
|---|
| Max Storage Temperature: | 70 °C |
|---|
| Max Supported Qty: | 2 |
|---|
| Min Operating Temperature: | 0 °C |
|---|
| Min Storage Temperature: | -40 °C |
|---|
| Performance: | Bandwidth: 3.6 Tbps ¦ Active SPAN sessions: 4 |
|---|
| Ports: | 48 x 1/10/25 Gigabit SFP+ + 6 x 40/100 Gigabit QSFP+ |
|---|
| Power Device: | Internal power supply (not installed) - hot-plug |
|---|
| Power Redundancy: | Optional |
|---|
| Power Redundancy Scheme: | N+1 |
|---|
| RAM: | 16 GB |
|---|
| Routing Protocol: | OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS |
|---|
| Software Included: | Cisco NX-OS |
|---|
| Subtype: | 25 Gigabit Ethernet |
|---|
| Version: | original |
|---|
| Weight: | 7.8 kg |
|---|
| Width: | 43.9 cm |
|---|
