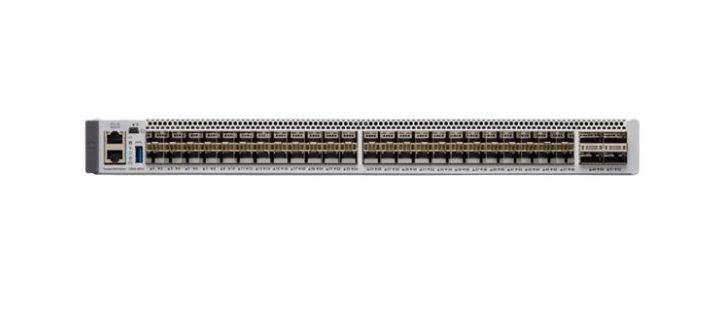

Catalyst 9500 48-port x 1/10/25G + 4-port 40/100G, Essential
- Categoria: Cisco
- SKU: C9500-48Y4C-E
Preço:10800€
COMPRE AGORA!
Descrição
| Built-in Devices: | RFID tag |
|---|---|
| Capacity: | Routing table entries: 80000 ¦ Indirect IPv4 routes: 212000 ¦ Host IPv4 routes: 90000 ¦ Indirect IPv6 routes: 212000 ¦ Host IPv6 routes: 90000 ¦ Multicast scale: 32000 ¦ QoS ACL scale: 16000 ¦ Security ACL scale: 270000 ¦ FNF entries: 96000 ¦ VLAN IDs: 40 |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Cla |
| Depth: | 45.7 cm |
| Device Type: | Switch - 48 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Encryption Algorithm: | 256-bit AES |
| Features: | DHCP support, NAT support, PAT support, trunking, MPLS support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Re |
| Flash Memory: | 16 GB |
| Height: | 4.39 cm |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Humidity Range Storage: | 5 - 95% (non-condensing) |
| Important product information: | The DNA licence is not included in the scope of delivery and must be ordered separately. Please contact your sales manager. |
| Installed Qty: | 1 |
| Interfaces: | 48 x 25Gbit LAN SFP28 ¦ 4 x 100Gbit LAN ¦ 2 x USB 3.0 |
| Jumbo Frame Support: | 9198 bytes |
| MAC Address Table Size: | 64K entries |
| MTBF: | 316,960 hours |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 65 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -20 °C |
| Performance: | Switching capacity (full duplex): 3.2 Tbps ¦ Forwarding rate: 1 Bpps |
| Ports: | 48 x 25 Gigabit SFP28 |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 650 Watt |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 |
| Processor: | 1: 2.4 GHz |
| RAM: | 16 GB |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF |
| Routing Protocol: | OSPF, IS-IS, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS |
| Software Included: | Cisco IOS XE 16.8.1 |
| Subtype: | 25 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 9.96 kg |
| Width: | 44.5 cm |
