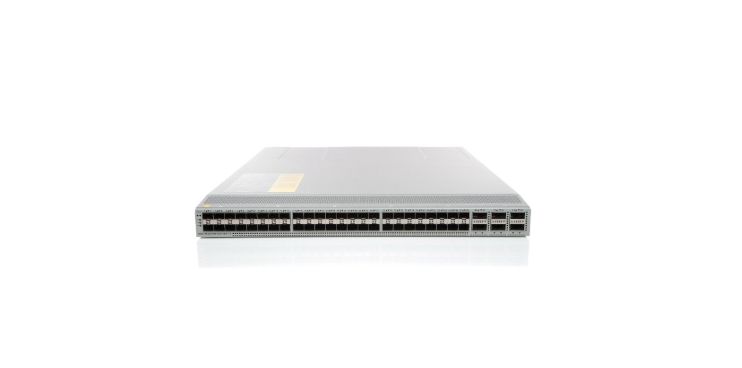

Cisco ONE Nexus 93180YC-FX - Switch - L3 - managed - 48 x 1/10/25 Gigabit Ethernet / 8/16/32Gb Fiber Channel / FCoE SFP+ + 6 x 40/100 Gigabit QSFP28 / FCoE - rack-mountable
- Categoria: Cisco
- SKU: C1-N9K-C93180YC-FX
Preço:19000€
COMPRE AGORA!
Descrição
| Built-in Devices: | 128 GB SSD |
|---|---|
| Capacity: | Multiple Spanning Tree Protocol instances: 64 ¦ HSRP groups: 490 ¦ Per VLAN Rapid Spanning Tree instances: 4000 ¦ Maximum number of links in a port channel: 32 ¦ Maximum number of port channels: 512 ¦ ECMP paths: 64 ¦ Virtual Routing and Forwarding (VRF) |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN61000- |
| Depth: | 57.1 cm |
| Device Type: | Switch - 48 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Virtual PortChannel (vPC) technology, MACsec support, 4 fans, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Etherne |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Included Accessories: | Fixed accessory kit |
| Interfaces: | 48 x 1/10/25Gbit LAN / 8/16/32Gb Fibre Channel SFP+ downlink ¦ 6 x 100Gbit/40Gbit LAN QSFP28 uplink ¦ 1 x management RJ-45 ¦ 1 x USB ¦ 1 x serial (RS-232) |
| MAC Address Table Size: | 512K entries |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Bandwidth: 3.6 Tbps ¦ Active SPAN sessions: 4 |
| Ports: | 48 x 1/10/25 Gigabit Ethernet / 8/16/32Gb Fiber Channel / FCoE SFP+ + 6 x 40/100 Gigabit QSFP28 / FCoE |
| Power Consumption Operational: | 425 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | N+1 |
| RAM: | 64 GB |
| Rack Mounting Kit: | Included |
| Routing Protocol: | OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS |
| Software Included: | Cisco NX-OS |
| Subtype: | 25 Gigabit Ethernet / 32Gb Fibre Channel |
| Version: | original |
| Weight: | 7.9 kg |
| Width: | 43.9 cm |
