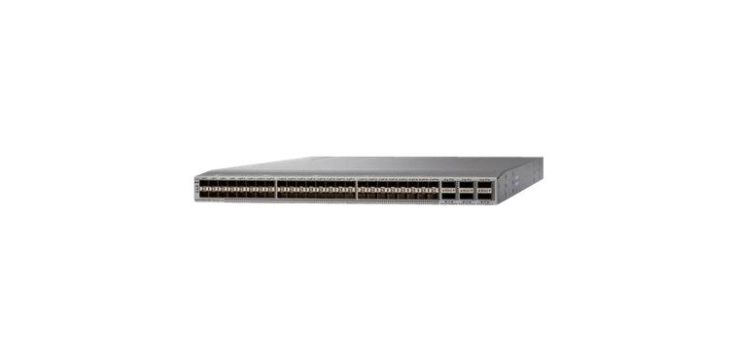

Cisco ONE Nexus 93180YC-EX - Switch - L3 - 48 x 10/25 Gigabit SFP+ + 6 x 100 Gigabit QSFP28 - rack-mountable
- Categoria: Cisco
- SKU: C1-N9K-C93180YC-EX
Preço:11050€
COMPRE AGORA!
Descrição
| Built-in Devices: | 64 GB SSD |
|---|---|
| Capacity: | Multiple Spanning Tree Protocol instances: 64 ¦ HSRP groups: 490 ¦ Per VLAN Rapid Spanning Tree instances: 4000 ¦ Maximum number of links in a port channel: 32 ¦ Maximum number of port channels: 512 ¦ ECMP paths: 64 ¦ Virtual Routing and Forwarding (VRF) |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 55022 |
| Depth: | 57.1 cm |
| Device Type: | Switch - 48 ports - L3 |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Layer 3 switching, High Availability, hot swappable 4 fans, Virtual PortChannel (vPC) technology, In-Service Software Upgrade (ISSU), NPV Gateway mode, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | 48 x 1/10/25Gbit LAN SFP+ downlink ¦ 6 x 100Gbit LAN QSFP28 uplink ¦ 1 x management RJ-45 ¦ 1 x management SFP+ ¦ 1 x USB ¦ 1 x serial (RS-232) |
| MAC Address Table Size: | 512K entries |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Bandwidth: 3.6 Tbps ¦ Active SPAN sessions: 4 |
| Ports: | 48 x 10/25 Gigabit SFP+ + 6 x 100 Gigabit QSFP28 |
| Power Device: | Internal power supply (not installed) - hot-plug |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | N+1 |
| RAM: | 16 GB |
| Rack Mounting Kit: | Included |
| Routing Protocol: | OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS |
| Software Included: | Cisco ONE |
| Subtype: | 25 Gigabit Ethernet |
| Version: | original |
| Weight: | 7.8 kg |
| Width: | 43.9 cm |
